Allen & Heath SQ7+ ดิจิตอลมิกซ์จอสัมผัสขนาด 9 นิ้ว รองรับสูงสุด 48 อินพุต FPGA 96kHz

คุณสมบัติ

• Digital Mixer 48 Input Channels @ 96kHz
• Mix Bus: 12 Stereo Aux/Group Mixes + LR

• Matrix: 6 Mono/Linkable Matrix

• ระบบประมวลผลช่องสัญญาณเต็มรูปแบบ: HPF, PEQ/GEQ, Compressor, Gate

• รองรับเทคโนโลยี DEEP Processing พร้อม Expanded Architecture

• RackExtra FX จำนวน 8 Engines แต่ละตัวมี Stereo Return โดยเฉพาะ — Reverbs, Gated Reverbs, Delays, Modulators และอื่น ๆ

• RackUltra FX จำนวน 4 Engines แต่ละตัวมี Stereo Send และ Return โดยเฉพาะ — Premium Reverbs, Vocal Tuning, Pitch,
• Distortion, Saturation (พัฒนาบน Flagship dLive)

• RackUltra FX Engines ทั้ง 4 ตัว สามารถรัน RackExtra FX ได้ด้วย เพื่อความยืดหยุ่นสูงสุด

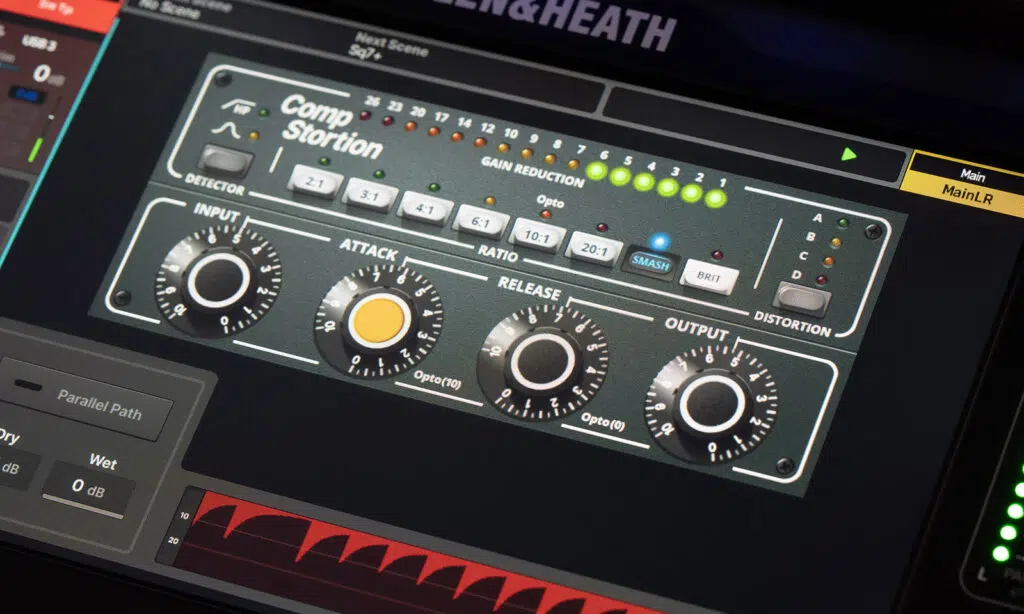

• รองรับ DEEP Add-Ons รุ่นใหม่: CompStortion, Source Expander, Dual Threshold Expander

• Mic Preamp XLR onboard 32 ช่อง

• Analog Output XLR 16 ช่อง

• Stereo Line In 3 ช่อง (4x TRS 1/4″ + 1x TRS 3.5mm)

• Talkback Input XLR 1 ช่อง

• TRS Output 2 ช่อง และ Stereo Headphone Output

• AES3 Stereo Output 1 ช่อง

• 128×128 Intelligent SLink Connectivity

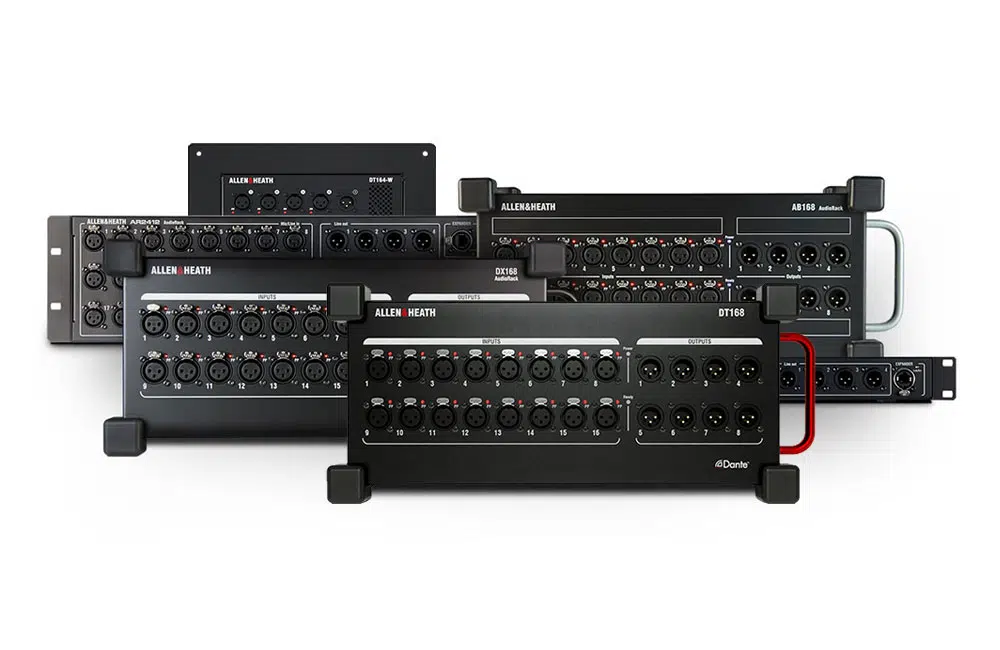

• รองรับการ์ดขยาย Dante / Waves SoundGrid / MADI / SLink

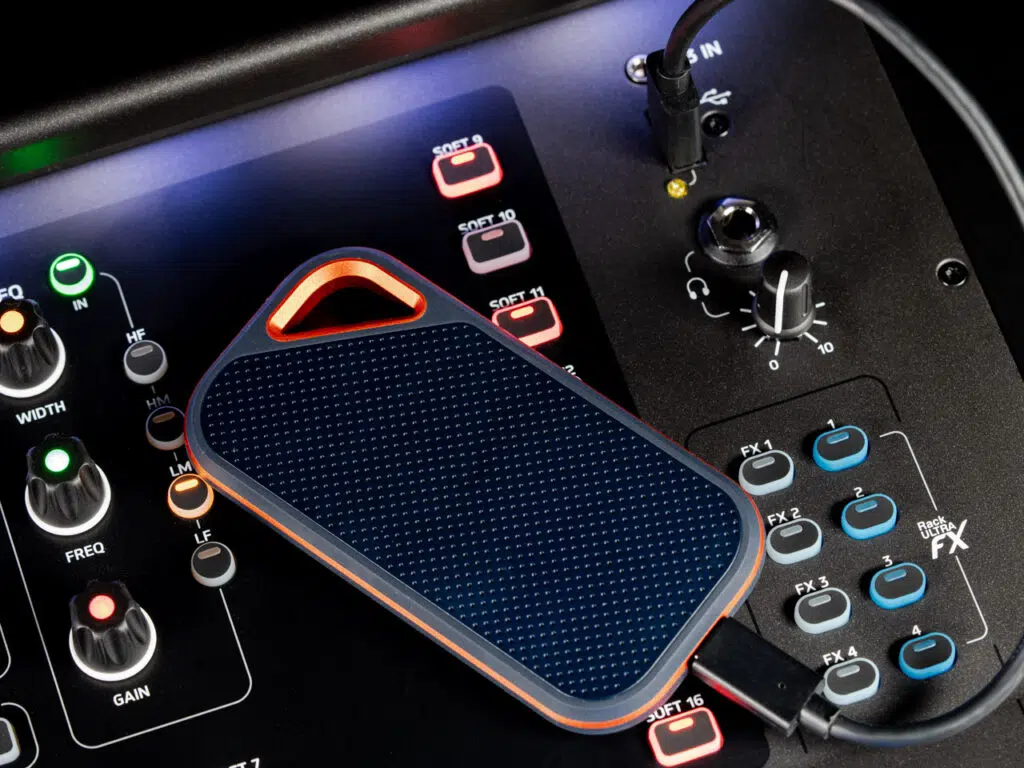

• USB A: รองรับ 16ch@96kHz หรือ 32ch@48kHz สำหรับ Recording/Playback

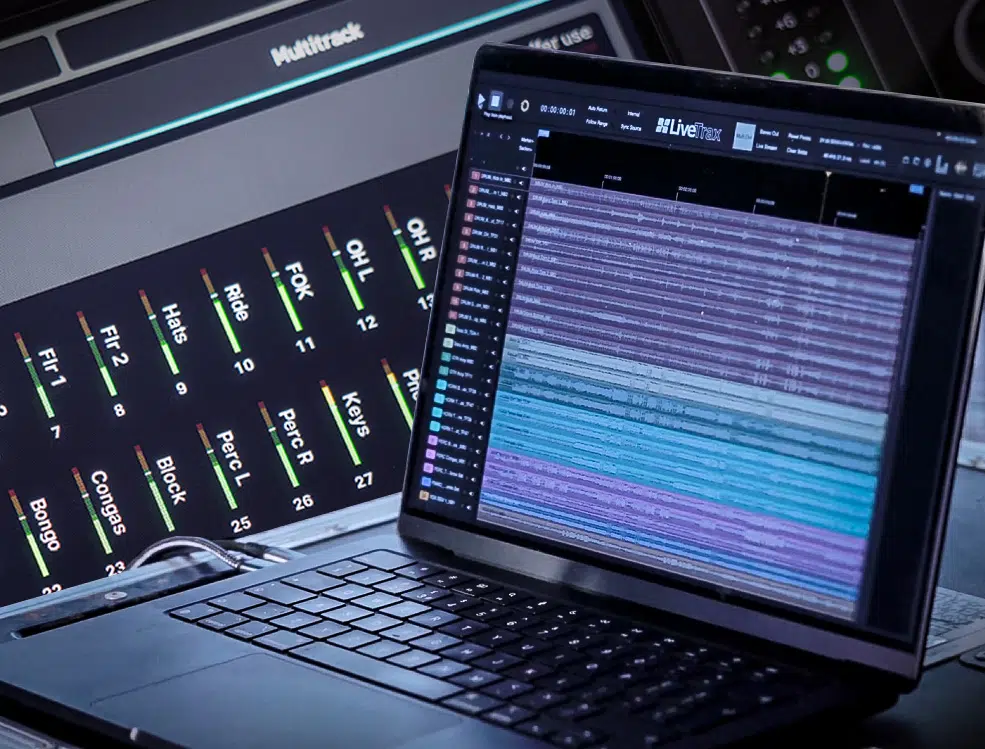

• USB B Audio Interface: 32×32@96kHz หรือ 32×32@48kHz

• Motorised Fader ขนาด 100 มม. จำนวน 33 ตัว (32+1 master) จัดได้ 6 Layer

• SoftKeys assignable จำนวน 16 ปุ่ม

• Soft Rotaries จำนวน 8 ตัว สำหรับเข้าถึงพารามิเตอร์เร็วขึ้น

• Touchscreen ขนาด 9 นิ้ว พร้อม New Dark GUI ออกแบบใหม่

• Footswitch Input รองรับแบบเดี่ยวหรือคู่ที่ Assign ได้

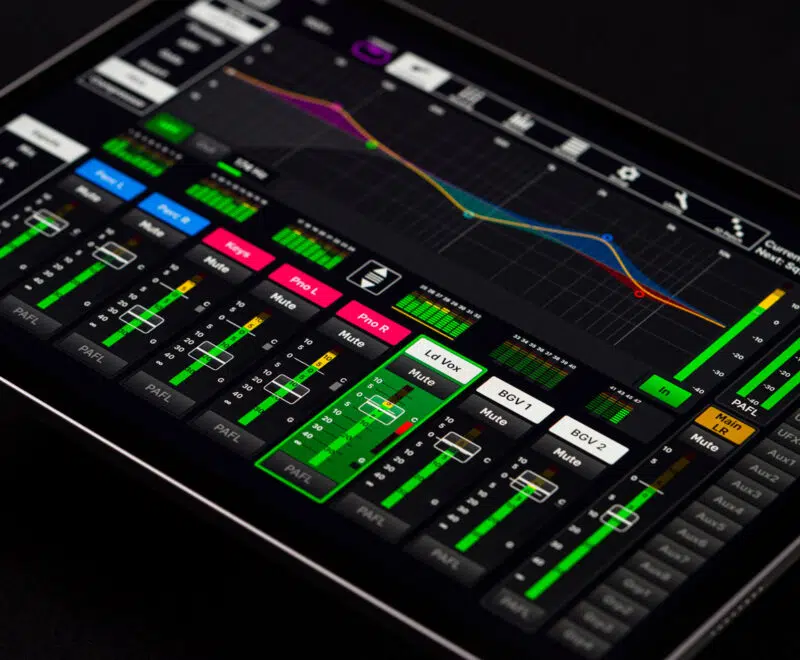

• Remote Control ผ่าน Windows, macOS, iOS และ Android (แอปฟรี)

• รองรับการติดตั้งบนแร็ก 19 นิ้ว (ผ่านชุดอุปกรณ์เสริม)

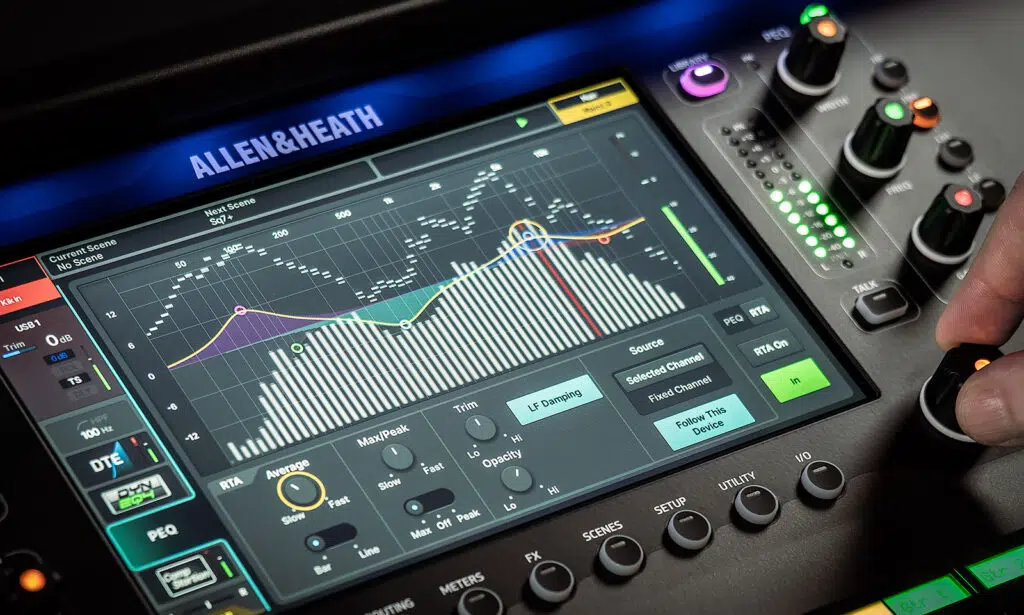

World Class Processing & FX   Processing All the Tools for the Perfect Mix Every input channel comes equipped with HPF, a super-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and Peak/RMS compressor for control and shaping of levels and transients. Mixes include both a parametric and 28 band graphic EQ along with compressor as standard, all ready to switch in when required.       DEEP Processing Latency Free Emulations   SQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware embedded directly into your channel and mix strips, adding no latency, and available on every channel simultaneously.     PlusPack Supercharge Your Mixer! Register your SQ+ and sign up to the Allen & Heath newsletter to get SQ+ PlusPack – a bundle including every DEEP and RackExtra FX Add-On available at launch – free with your new mixer!      Effects Two FX Suites. Twelve FX Engines SQ+ is equipped with 8 RackExtra FX engines, each with its own dedicated stereo return, giving you access to the acclaimed RackExtra FX suite, featuring emulations of legendary reverbs, gated reverbs, delays, modulators and more. Four built-in RackUltra FX engines take SQ+ further, each with dedicated stereo sends and returns. First developed for the flagship dLive system, and proven on international tours, the RackUltra FX suite of add-ons brings premium reverbs, vocal tuning and pitch processors, distortion, saturation, and more to SQ+. The 4 engines can also run RackExtra FX for maximum flexibility.     Interface Record. Stream. Mix SQ+’s built-in USB audio interface enables easy multitrack recording, backing-track playback, livestreaming, and virtual soundcheck at up to 32×32 channels at both 96kHz and 48kHz. Class compliant and compatible with Mac and Windows with ASIO and WDM drivers available. You can also map faders, rotaries, channel keys and SoftKeys to control your favourite DAW using the Allen & Heath MIDI Control app. SQ-Drive Capture. Playback. Virtual Soundchec The integrated SQ-Drive makes it quick and easy to capture or playback 16 channels (96kHz), 32 channels (48kHz), or a simple stereo mix, direct to a USB drive. No need for a laptop or DAW – just press record.        Connectivity & Expansion SQ+ is designed to sit at the centre of whatever system you’re building, and to grow with it.     Everything I/O The 128×128 Intelligent SLink port opens up the entire Allen & Heath Everything I/O ecosystem, connecting seamlessly to a wide range of remote stage boxes, expanders, and other Allen & Heath consoles.   Audio Networking A dedicated I/O expansion slot supports optional cards for Dante, MADI, Waves and additional SLink connections, making SQ+ a natural fit for complex multi-format installs, FOH/monitor splits and broadcast setups. Apps     SQ+ MixPad SQ+ MixPad gives you the freedom to mix from anywhere in the venue, even if that’s not physically close to the mixer’s location. The app is available for free on iOS, Android, Windows and macOS platforms.    AMM Automatic Mic Mixing SQ+’s advanced Automatic Mic Mixers make it a natural choice for mixing conferences, panel discussions, and broadcast applications. Two independent 24 channel AMM’s can run simultaneously for two separate zones or combine into a single 48 channel AMM for larger events.       Built for the Real World The live environment is unforgiving, so SQ+ is built to take it. A robust all-metal chassis provides the strength and rigidity to handle the rigours of touring and installation alike, while the new carbon-on-graphite finish with black and white knobs and fader caps gives it a sharp, contemporary look that holds up under real-world use. Every SQ+ comes backed by a 2-year manufacturer’s warranty as standard.
