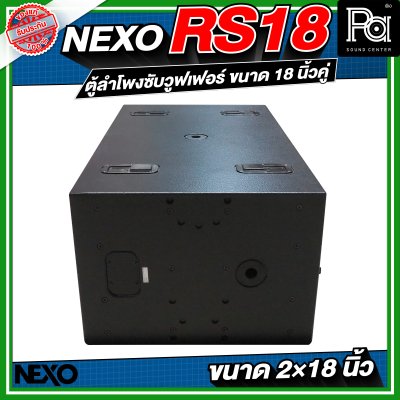

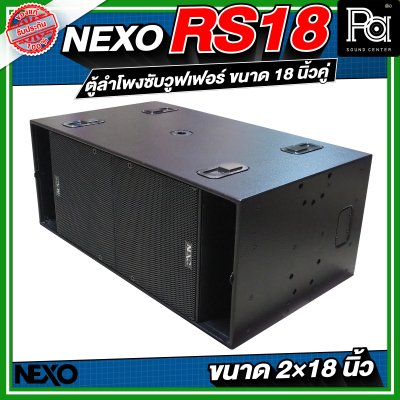

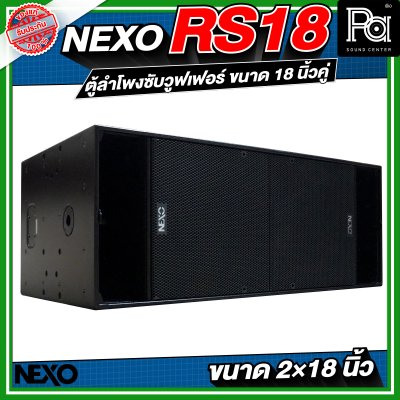

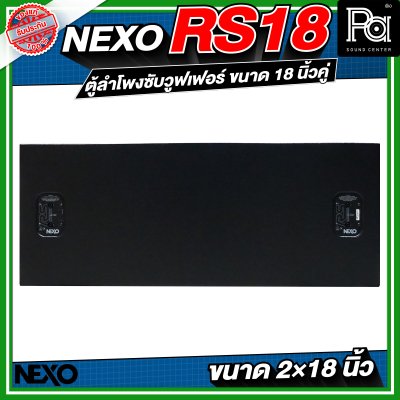

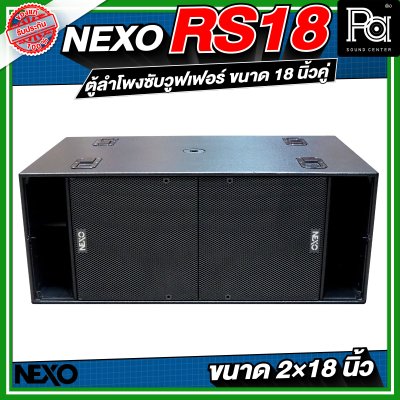

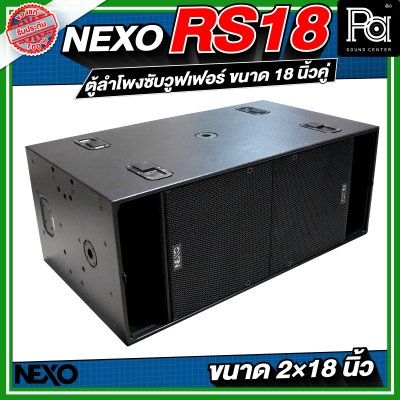

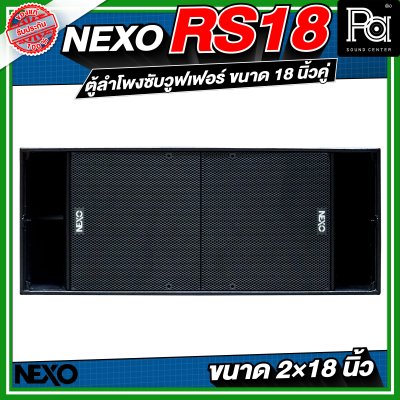

NEXO RS18 ตู้ลำโพงซับวูฟเฟอร์ ขนาด 18 นิ้วคู่

NEXO RS18 ตู้ลำโพงซับวูฟเฟอร์ ขนาด 18 นิ้วคู่

RS18
The RS18 uses two 18 long excursion Neodymium drivers drivers in a low profile cabinet to extend system response down to 30Hz. NEXOs patent pending RAY SUB Technology is based on optimising the positioning and phase relationships of radiating surfaces in vented enclosures, permitting acoustic distance from rear to front sections to always increase as frequency decreases. Consequently rear and front sections sum up efficiently over the entire subwoofer bandwidth, allowing for an average of 5dB gain from the rear section in the forward direction and cancelling in the rear direction.

Key Features
- Low profile, high output, modular scalable bass
- Configurable directivity pattern
- Cardioid pattern reduces rear levels by minimising rear/side wall reflections
- Aerodynamic profiled vents with 20db noise reduction and improved linearity at high SPL
- Frequency response 30Hz - 100Hz
- Sensitivity 105dB
- 2 x 18" configuration
- Applies across entire NEXO Product Line

[a] Response curves and data: anechoic far field above 200 Hz, half-space anechoic below 200 Hz.
[b] Sensitivity & peak SPL: will depend on spectral distribution. Measured with band limited pink noise.
Refers to the specified +/- 3 dB range. Data are for speaker + processor + recommended amplifier combinations.
[c] Directivity curves and data: 1/3 octave smoothed frequency response, normalized to on-axis response. Data obtained by computer processing of off-axis response curves.
